FOLLISCOPE
Video Micro Scope & Analysis System
for Hair and Scalp
Folliscope system enables evaluation of density, diameter
and can complement the results of a detailed examination
of the scalp, in practice as well as for reserch, in hair replacement.
Among the functions in our system, density, thickness, length,
discoloration, etc. can be measured in detail, and various
comparisons and analysis can be performed.
MAIN FUNCTION
(DENSITY, CALIBER, LENGTH, DP)
FOLLISCOPE
Video Micro Scope & Analysis System
for Hair and Scalp
Folliscope system enables evaluation
of density, diameter and can complement
the results of a detailed examination
of the scalp, in practice as well as for
research, in hair replacement.
Among the functions in our system, density, thickness, length,
discoloration, etc. can be measured in detail, and various
comparisons and analysis can be performed.
DENSITY
If you first apply the maximum area or the range you want and start, the number of hairs and the number of follicles according to the measurement area and magnification are displayed, displays the number of hairs and the number of hairs per follicular unit per square centimeter based on the area of measurement.
At this time, depending on the number of hair, High, Medium, Low, etc. are displayed. You can change this value in the set up menu.
CALIBER
Measure the thickness of hair. The thickness can be measured up to the last 15.
numbers 1 to 15 on the left indicate the number of the hair to bo measured. It is
displayed as T (Terminal)When it is above the reference value set aaccording to
the measured value, or V (Vellus) When ot os bellow. The reference value can
be chaanged in the set up menu.
LENGTH
It is the function to compare the length of hair. Only area, DP, density chech data is displayed. The length can be measured up to th last 15m and numbers 1 to 15 on the left indicate the number of the hair to be measured.
Depigmentation
Displays the color of the hair. The hair color can be maesured up to the last 15, and the numbers 1 to 15 on the left inducate the number of the measured hair.
You can measure depigmented hair in black, yellow and gray.
MAIN FUNCTION
(DENSITY, CALIBER, LENGTH, DP)
DENSITY
If you first apply the maximum area or the range you want and start, the number of hairs and the number of follicles according to the measurement area and magnification are displayed, displays the number of hairs and the number of hairs per follicular unit per square centimeter based on the area of measurement.
At this time, depending on the number of hair, High, Medium, Low, etc. are displayed. You can change this value in the set up menu.
CALIBER
Measure the thickness of hair. The thickness can be measured up to the last 15. Numbers 1 to 15 on the left indicate the number of the hair to be measured. It is displayed as T (Terminal)When it is above the reference value set according to the measured value, or V (Vellus) When ot os bellow. The reference value can be chaanged in the set up menu.
LENGTH
It is the function to compare the length of hair. Only area, DP, density chech data is displayed. The length can be measured up to th last 15m and numbers 1 to 15 on the left indicate the number of the hair to be measured.
DEPIGMENTATION
Displays the color of the hair. The hair color can be maesured up to the last 15, and the numbers 1 to 15 on the left inducate the number of the measured hair.
You can measure depigmented hair in black, yellow and gray.

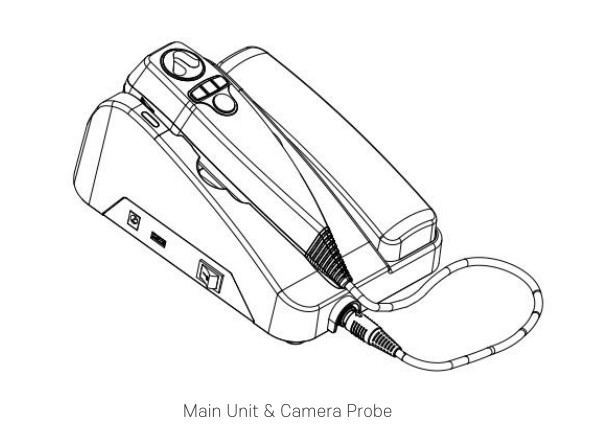

HARDWARE ( ASW-300 )
SOFTWARE ( Folliscope 5.0 )
We started developing Folliscope 5.0 continuously from 2.8 for years. It has been developed and sold by
university hospitals and researchers across the country since many years.
Today it is being developed with feedback provided by many organizations to promote better conditions and quality.

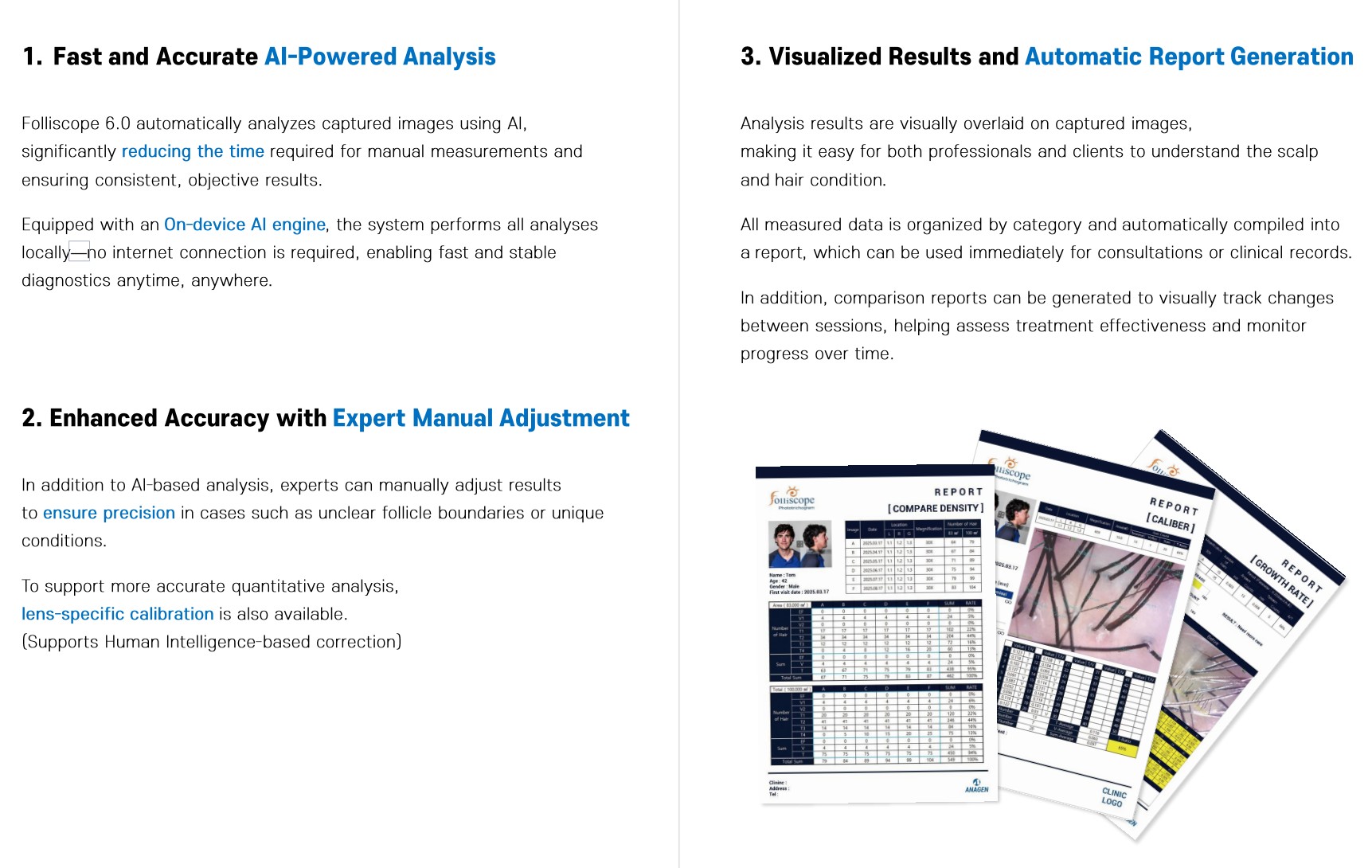

Data can be recorded for various functions such as hair thickness, length, and bleached hair, and reports can be printed.
FOLLISCOPE 5.0 - DESINTY
SPECIFICATION
ITEM | Folliscope |
USB | USB 2.0 UVC (USB Video Class) |
OS Support | Windows 10, Windows 11 |
Image Sensor | 1/4 Inch Color CMOS UXGA (2 Mega Pixel) |
Sensor Pixel | Effective pixel : 1,624 X 1,212 Pixel |
Image Capture Size | 2 M (1280 X1024) |
Camera Button Function | Start, Mode Change, Image Capture |

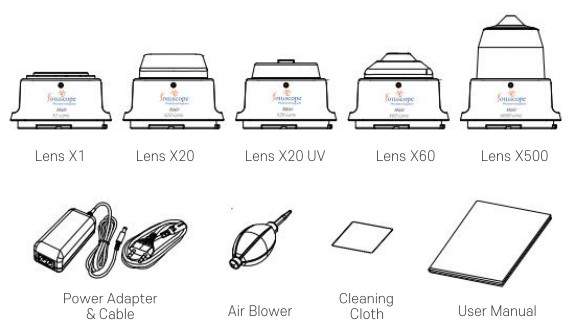

Magnification Lens | X1 Lens, X30 Lens, X60 Lens, |
Focusing | X30 Lens : Auto Focusing Type X60 Lens : Manual Focusing Type |
Disinfection | UV Disinfection Lamp |
DC IN Adaptor | 12V DC / 1.5A Max |
Weight | About 800g (ASW-100 / Camera & Cradle) |
Operating Temperature | -10 ~ 50 'C |
Storage Temperature | -30 ~ 50 'C |
Operating Humidity | 5 ~ 85% |
DESKTOP( PC ) SPECIFICATIONS
MINIMUM | RECOMMENDED | |
Cpu | i5 - 5th generation | i5 - 12th generation |
Ram | 4G | 8G |
Graphiccard | none | necessary |
Windows Version | At least Windows 10 | At least Windows 10 |
